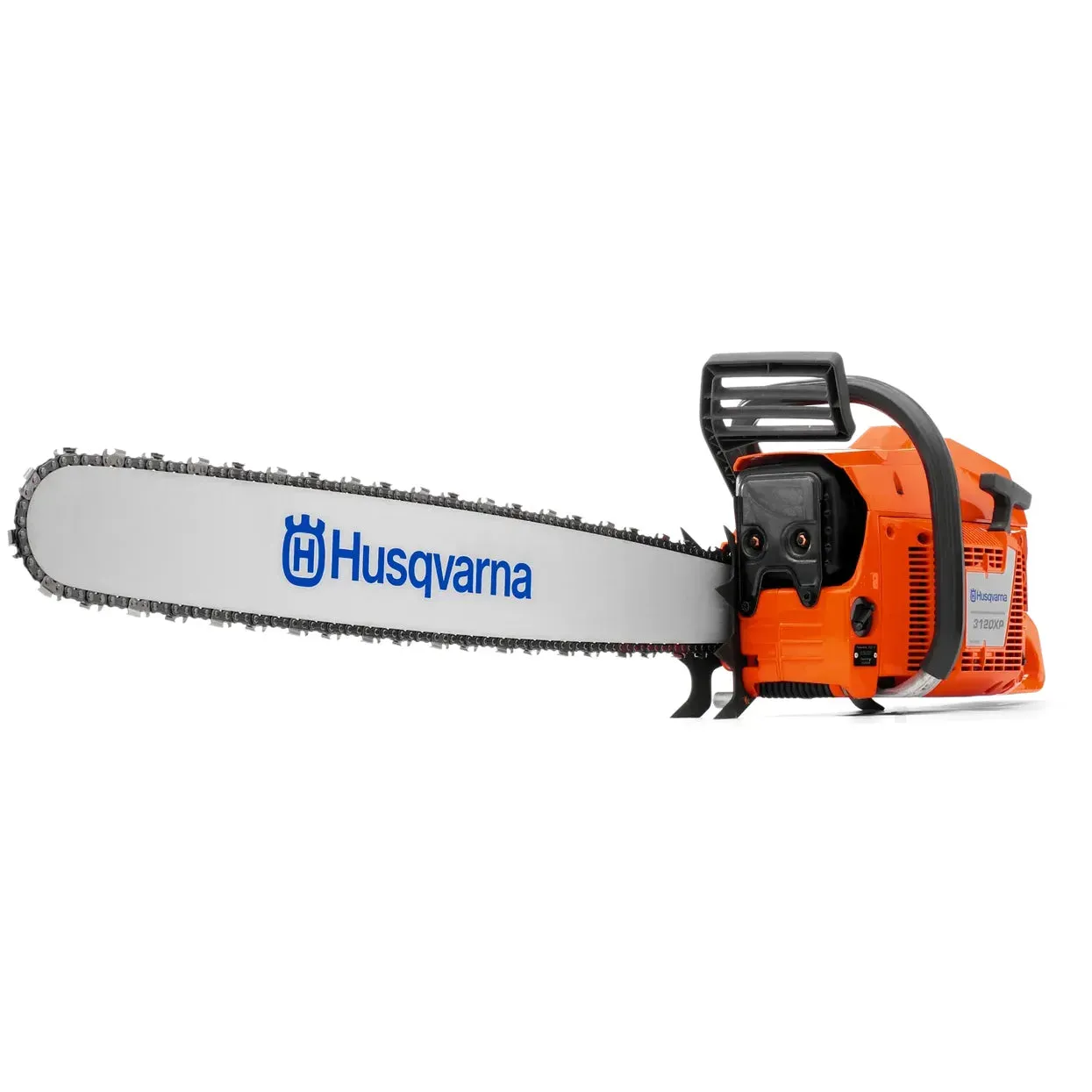

Professional 119cc chainsaw built for felling the largest trees
Husqvarna’s largest chainsaw is one of the most powerful in the world. The primary applications for the 3120 XP® are extreme logging, portable saw mills and stump work. This saw is designed to pull the chain on our longest bars-- up to six feet! Like all Husqvarna chainsaws, the 3120 XP® has a superior power-to-weight ratio. Thanks to Smart Start®, LowVib™ and other premium features, this heavy-duty chainsaw is surprisingly easy to start and operate.
Engine |
|
| Chain speed at max power | 65.9 fts |
|---|---|
| Cylinder displacement | 118.8 cm³ |
|
Output shaft power1
|
8.4 hp |
| Torque, max. | 7.7 Nm |
| Torque, max. at rpm | 6,000 rpm |
| Clutch engagement speed (±120) | 3,400 rpm |
| Electrode gap | 0.02 in |
| Idling speed | 2,500 rpm |
| Ignition module air gap | 0.01 in |
| Maximum power speed | 9,000 rpm |
| Oil pump capacity, max | 54 ml/min |
| Oil pump capacity, min | 30 ml/min |
| Oil pump type | Automatic |
| Spark Plug | Champion RCJ7Y, NGK BPMR7A |
Equipment |
|
| Recommended bar length, min | 24 in |
| Pitch | .404" |
| Recommended bar length, max | 42 in |
| Chain type | -- |
| Sprocket type | Rim 7 |
| Gauge | .063" |
Dimensions |
|
| Weight (excl. cutting equipment) | 22.9 lbs |
Sound and noise |
|
| Sound pressure level at operators ear | 102 dB(A) |
| Sound power level, guaranteed (LWA) | 116 dB(A) |
| Sound power level, measured | 115 dB(A) |
Vibration |
|
| Equivalent vibration level (ahv, eq) rear handle | 7.8 m/s² |
| Equivalent vibration level (ahv, eq) front handle | 6.7 m/s² |
Lubricant |
|
| Oil tank volume | 1.48 US pint |
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 |
