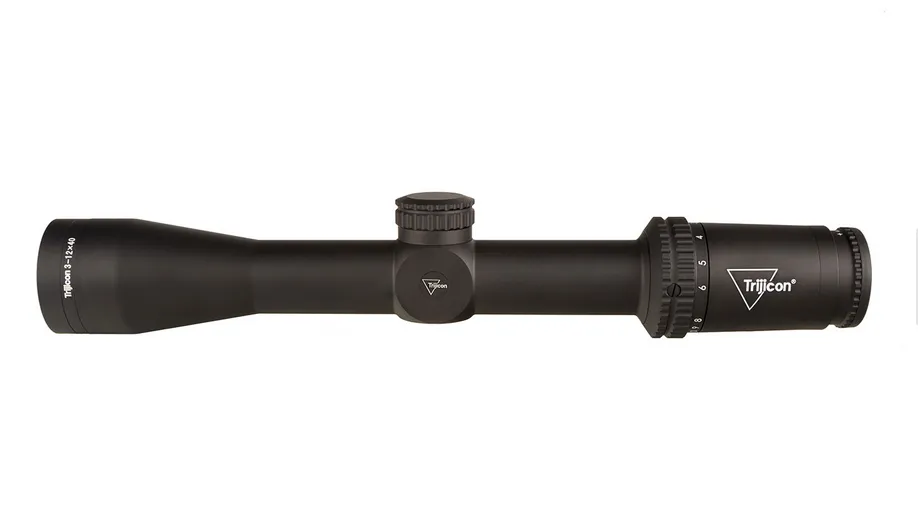

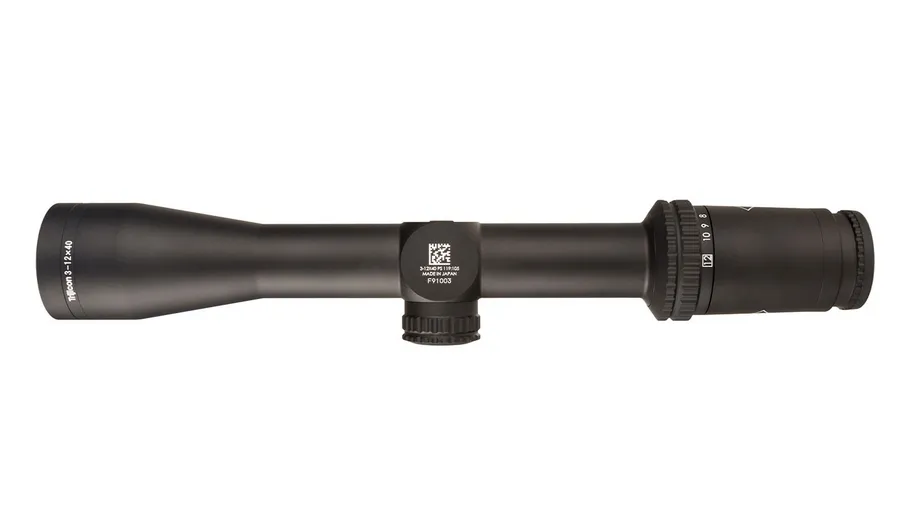

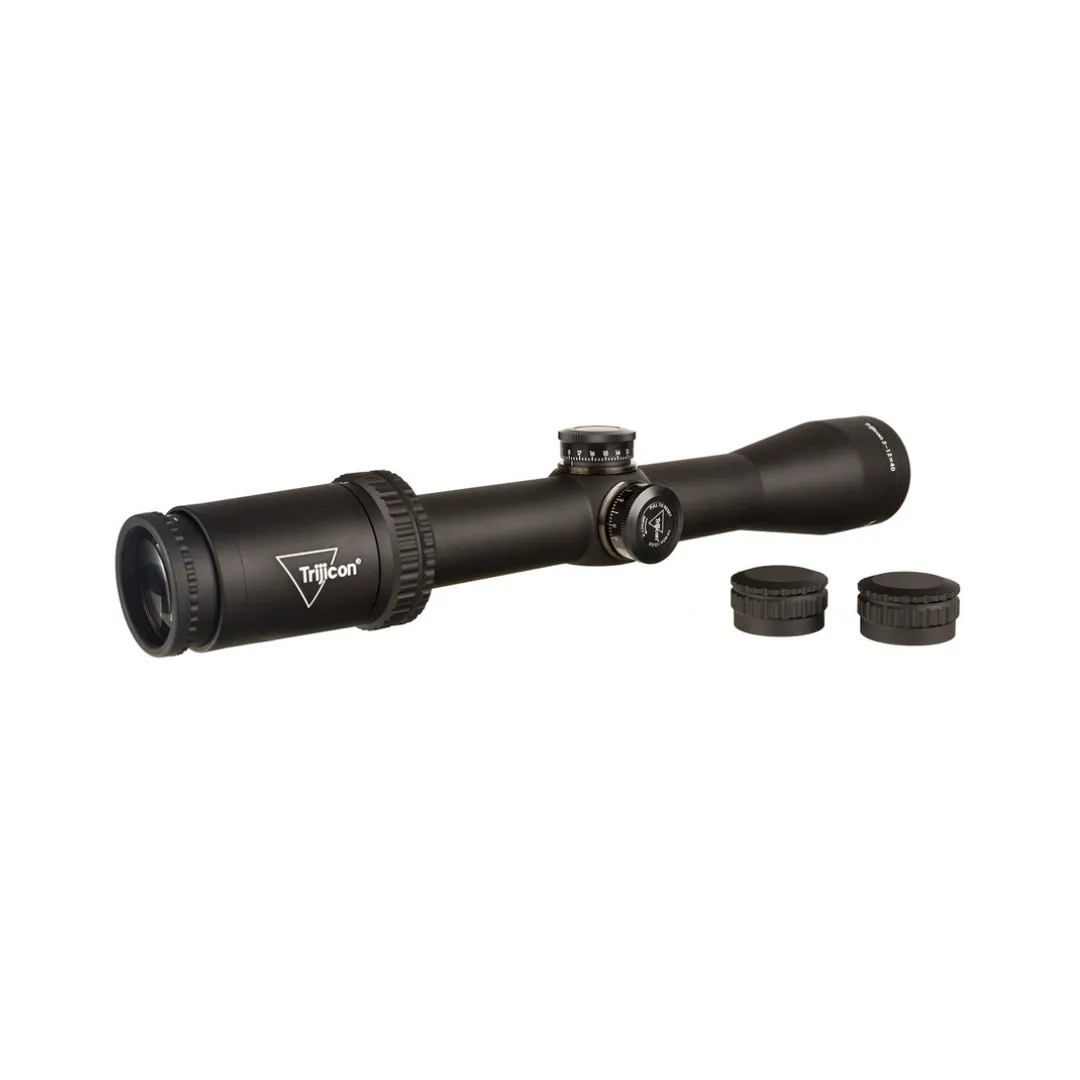

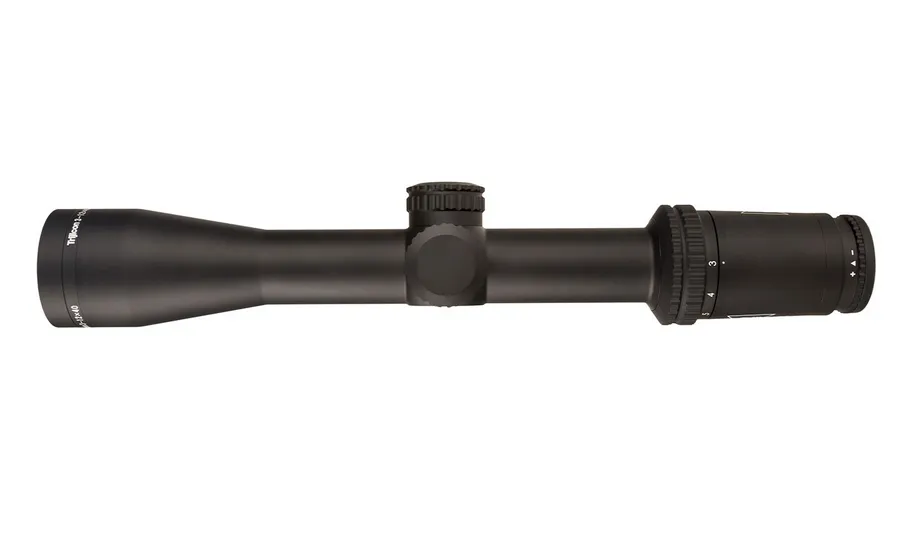

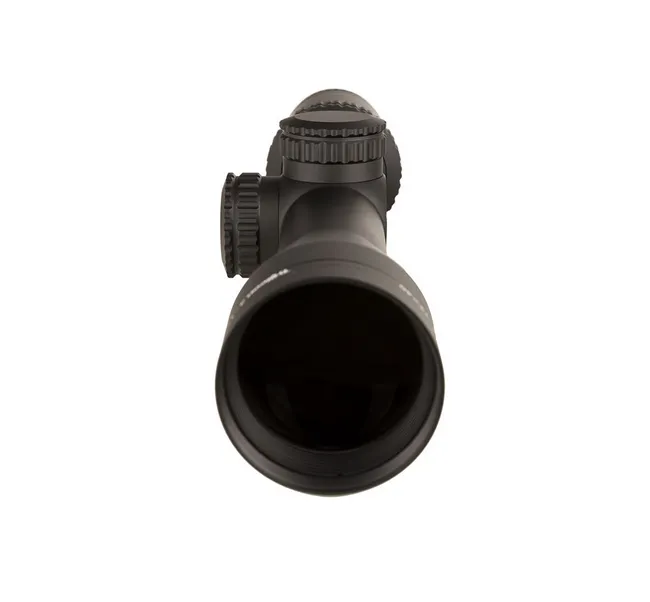

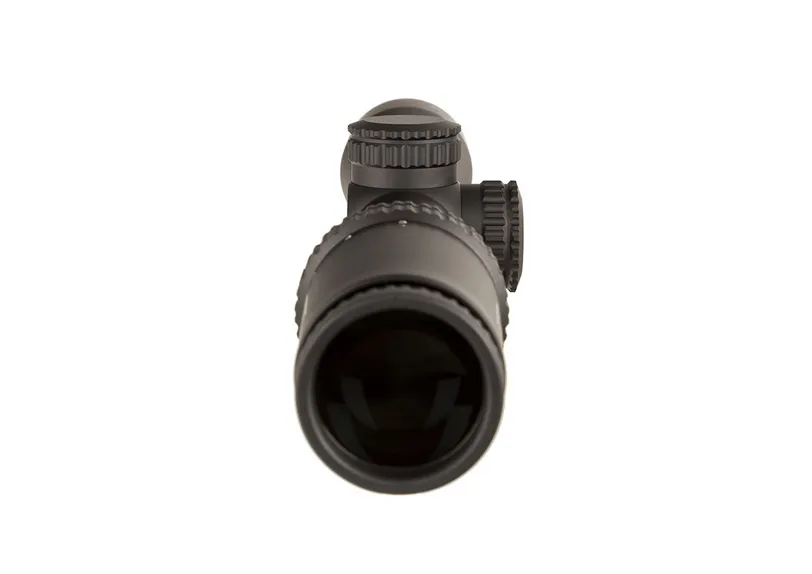

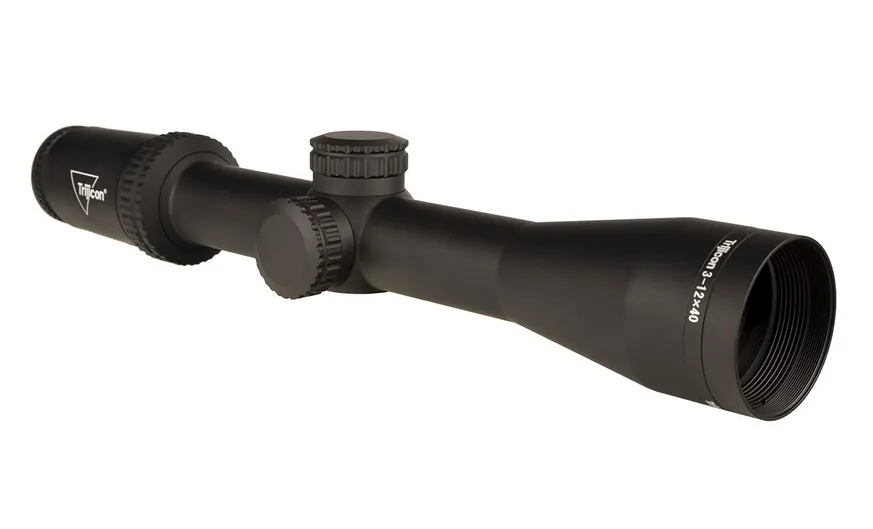

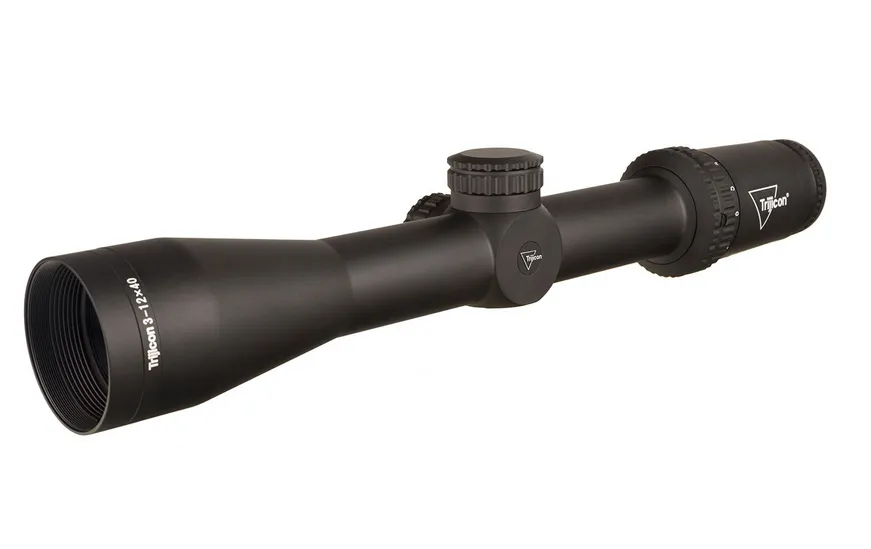

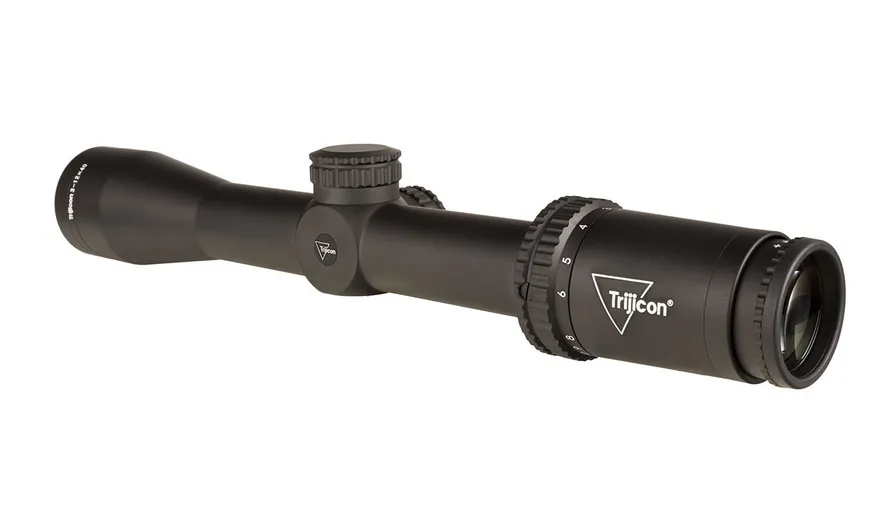

Ascent® 3-12x40 Riflescope
Second Focal Plane (SFP) Riflescope w/ BDC Target Holds, 30mm Tube, Matte Black, Capped Adjusters.
How good can you be? Find out with the Trijicon Ascent® 3-12-x40 riflescope. Designed for quick target acquisition and shot placement using the BDC Target Hold reticle, the Ascent 3-12x40 delivers both CQB and long-range performance, edge-to-edge clarity and a 30mm tube diameter with aircraft-grade aluminum. This rugged, lightweight tactical riflescope is ready for anything.
Part Number: AT1240-C-2800002
Includes
Lens Cap
Scopecoat™
Quick Reference Guide
Warranty Card
Vinyl Logo Sticker
Features
Length x Width x Height
12.55 in x 2.26 in x 2.26 in
(318.77mm x 57.4mm x 57.4mm)
(318.77mm x 57.4mm x 57.4mm)
Weight
17.8 oz. (504.62g)
Magnification
3-12x
Objective Size
40mm
Tube Size
30mm
Reticle Pattern: BDC Target Holds
Day Reticle Color: Black
Focal Plane: Second
Bullet Drop Compensating (BDC): Yes
Adjustment: 1/4 MOA per click
Adjustment Range: 70 MOA Total Travel
Eye Relief: 2.2 in. - 3.2 in. (55.88mm - 81.28mm)
Exit Pupil: 0.52 in. - 0.13 in. (13.21mm - 3.3mm)
Field of View (degrees): 6.93° - 1.74°
Field of View (feet): 36.3 ft. - 9.1 ft. @ 100 yds. (12.1 - 3.03m @ 100m)
Housing Material: 6061 Aircraft Grade Aluminum
Finish: Matte Black
